Computer Science Logo Style, Volume 1, Chapter 7
Introduction to Recursion
Computer Science Logo Style volume 1: Symbolic Computing 2/e Copyright (C) 1997 MIT
Brian Harvey University of California, Berkeley |
NOTE: This webpage contains a slightly modified version of Brian Harvey's chapter. I have made minor changes, primarily in the examples, so that the code works with the TG applet/application and fits in with the rest of the BFOIT material. Here is Brian's original text. -- guy
My goal in this chapter is to write a procedure named
downup
that behaves like this:
? downup "hello hello hell hel he h he hel hell hello ? downup "goodbye goodbye goodby goodb good goo go g go goo good goodb goodby goodbye
The programming techniques we've used so far in this book don't allow an elegant solution to this problem. We'll use a new technique called recursion: writing a procedure that uses itself as a subprocedure.
We're going to solve this problem using recursion. It turns out that the idea of recursion is both very powerful--we can solve a lot of problems using it--and rather tricky to understand. That's why I'm going to explain recursion several different ways in the coming chapters. Even after you understand one of them, you'll probably find that thinking about recursion from another point of view enriches your ability to use this idea. The explanation in this chapter is based on the combining method.
Starting Small
My own favorite way to understand recursion is based on the general
problem-solving strategy of solving a complicated problem by starting with a
simpler version. To solve the downup
problem, I'll start by solving
this simpler version: write a downup
procedure that works only for
a single-character input word. (You can't get much simpler than that!) Here's my
solution:
to downup1 :word println :word end ? downup1 "j j
See how well it works?
Building Up
Of course, downup1
won't work at all if you give it an input
longer than one character. You may not think this was such a big step. But bear
with me. Next I'll write a procedure that acts like downup
when you
give it a two-letter input word:
to downup2 :word println :word println butlast :word println :word end ? downup2 "it it i it
We could keep this up for longer and longer input words, but each procedure
gets more and more complicated. Here's downup3
:
to downup3 :word println :word println butlast :word println butlast butlast :word println butlast :word println :word end
- How many println
instructions would I need to write
downup4
this way? How many would I need for downup20
?
Luckily there's an easier way. Look at the result of invoking
downup3
:
? downup3 "dot dot
do |
d |
do |
The trick is to recognize that the boxed lines are what we'd get by invoking
downup2
with the word do
as input. So we can find the
instructions in downup3
that println those three lines and replace
them with one instruction that calls downup2
:
to downup3 :word println :word downup2 butlast :word println :word end
You might have to think a moment to work out where the butlast
came from, but consider that we're given the word dot
and we want
the word do
.
Once we've had this idea, it's easy to extend it to longer words:
to downup4 :word println :word downup3 butlast :word println :word end to downup5 :word println :word downup4 butlast :word println :word end
- Can you rewrite downup2
so that it looks like these others?
- Before going on, make sure you really understand these procedures by
answering these questions: What happens if you use one of these numbered
versions of downup
with an input that is too long? What if the
input is too short?
Generalizing the Pattern
We're now in good shape as long as we want to downup
short
words. We can pick the right version of downup
for the length of
the word we have in mind:
? downup5 "hello hello hell hel he h he hel hell hello ? downup7 "goodbye goodbye goodby goodb good goo go g go goo good goodb goodby goodbye
Having to count the number of characters in the word is a little unaesthetic, but we could even have the computer do that for us:
to downup :word if equal? count :word 1 [downup1 :word] if equal? count :word 2 [downup2 :word] if equal? count :word 3 [downup3 :word] if equal? count :word 4 [downup4 :word] if equal? count :word 5 [downup5 :word] if equal? count :word 6 [downup6 :word] if equal? count :word 7 [downup7 :word] end
There's only one problem. What if we want to be able to say
downup "antidisestablishmentarianism
You wouldn't want to have to type in separate versions of downup
all the way up to downup28
!
What I hope you're tempted to do is to take advantage of the similarity of
all the numbered downup
procedures by combining them into a single
procedure that looks like this:
to downup :word println :word downup butlast :word println :word end
Compare this version of downup
with one of the numbered
procedures like downup5
. Do you see that this combined version
should work just as well, if all the numbered downup
procedures are
identical except for the numbers in the procedure names? Convince yourself that
that makes sense.
- Okay, now try it.
What Went Wrong?
You probably saw something like this:
? downup "hello hello hell hel he h followed by a pop-up ERROR: (downup) Can't do butlast on an empty word.
There's nothing wrong with the reasoning I used in the last section. If all
the numbered downup
procedures are identical except for the
numbers, it should work to replace them all with a single procedure following
the same pattern.
The trouble is that the numbered downup
procedures
aren't quite all identical. The exception is downup1
. If
it were like the others, it would look like this:
to downup1 :word println :word downup0 butlast :word println :word end
Review the way the numbered downup
s work to make sure you
understand why downup1
is different. Here's what happens when you

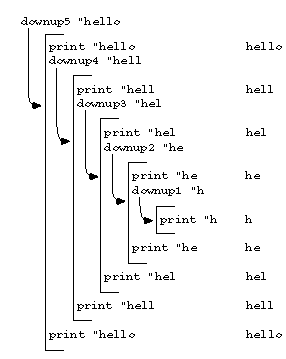

invoke one of the numbered versions:
In this chart, instructions within a particular procedure are indented the
same amount. For example, the lines println "hello
and downup4
"hell
are part of downup5
, as is the line println
"hello
at the very end of the chart. The lines in between are indented
more because they're part of downup4
and its subprocedures.
(By the way, the lines in the chart don't show actual instructions in the
procedure definitions. Otherwise all the println
lines would say
println :word
instead of showing actual words. In the chart I've
already evaluated the inputs to the commands.)
The point of the chart is that downup1
has to be special because
it marks the end of the "down" part of the problem and the beginning of the "up"
part. downup1
doesn't invoke a lower-numbered downup
subprocedure because there's no smaller piece of the word to println.
- Okay, Logo knows when to stop the "down" part of the program because
downup1
is different from the other procedures. Question: How does
Logo know when to stop the "up" part of the program? Why doesn't
downup5
, in this example, have to be written differently from the
others?
The Stop Rule
Our attempt to write a completely general downup
procedure has
run into trouble because we have to distinguish two cases: the special case in
which the input word contains only one character and the general case for longer
input words. We can use ifelse
to distinguish the two cases:
to downup :word end to downupMany :word println :word downup butlast :word println :word end to downupOne :word println :word end to downup :word ifelse equal? count :word 1 [downupOne :word] [downupMany :word] end
You'll find that this version of the downup
program actually
works correctly. Subprocedure downupOne
is exactly like the old
downup1
, while downupMany
is like the version of
downup
that didn't work.
It's possible to use the same general idea, however -- distinguishing the
special case of a one-letter word -- without having to set up this
three-procedure structure. Instead we can take advantage of the fact that
downupOne
's single instruction is the same as the first
instruction of downupMany
; we can use a single procedure that
stop
s early if appropriate.
to downup :word println :word if equal? count :word 1 [stop] downup butlast :word println :word end
The if
instruction in this final version of downup
is called a stop rule.
Downup
illustrates the usual pattern of a recursive procedure.
There are three kinds of instructions within its definition: (1) There are the
ordinary instructions that carry out the work of the procedure for a particular
value of the input, in this case the println
instructions. (2) There
is at least one recursive call, an instruction that invokes the same
procedure with a smaller input. (3) There is a stop rule, which prevents the
recursive invocation when the input is too small.
It's important to understand that the stop rule always comes before the recursive call or calls. One of the common mistakes made by programmers who are just learning about recursion is to think this way: "The stop rule ends the program, so it belongs at the end of the procedure." The right way to think about it is that the purpose of the stop rule is to stop the innermost invocation of the procedure before it has a chance to invoke itself recursively, so the stop rule must come before the recursive call.
Local Variables
When you're thinking about a recursive procedure, it's especially important
to remember that each invocation of a procedure has its own local variables.
It's possible to get confused about this because, of course, if a procedure
invokes itself as a subprocedure, each invocation uses the same names
for local variables. For example, each invocation of downup
has a
local variable (its input) named word
. But each invocation has a
separate input variable.
It's hard to talk about different invocations in the abstract. So let's look
back at the version of the program in which each invocation had a different
procedure name: downup1
, downup2
, and so on.
If you type the instruction
downup5 "hello
the procedure downup5
is invoked, with the word
hello
as its input. Downup5
has a local variable named
word
, which contains hello
as its value. The first
instruction in downup5
is
println :word
Since :word
is hello
, this instruction prints
hello
. The next instruction is
downup4 butlast :word
This instruction invokes procedure downup4
with the word
hell
(the butlast
of hello
) as input.
Downup4
has a local variable that is also named word
.
The value of that variable is the word hell
.
At this point there are two separate variables, both named word
.
Downup5
's word
contains hello
;
downup4
's word
contains hell
. I won't go
through all the details of how downup4
invokes downup3
and so on. But eventually downup4
finishes its task, and
downup5
continues with its final instruction, which is
println :word
Even though different values have been assigned to variables named
word
in the interim, this variable named word
(the one that is local to downup5
) still has its original value,
hello
. So that's what's printed.
In the recursive version of the program exactly the same thing happens about
local variables. It's a little harder to describe, because all the procedure
invocations are invocations of the same procedure, downup
. So I
can't say things like "the variable word
that belongs to
downup4
"; instead, you have to think about "the variable named
word
that belongs to the second invocation of downup
."
But even though there is only one procedure involved, there are still
five procedure invocations, each with its own local variable named
word
.
More Examples
- Before I go on to show you another example of a recursive procedure, you
might try to write down
and up
, which should work
like this:
? down "hello hello hell hel he h ? up "hello h he hel hell hello
As a start, notice that there are two println
instructions in
downup
and that one of them does the "down" half and the other does
the "up" half. But you'll find that just eliminating one of the
println
s for down
and the other for up
doesn't quite work.
After you've finished down
and up
, come back here
for a discussion of a similar project, which I call inout
:
? inout "hello hello ello llo lo o lo llo ello hello
At first glance inout
looks just like downup
,
except that it uses the butfirst
of its input instead of the
butlast
. Inout
is somewhat more complicated than
downup
, however, because it has to print spaces before some of the
words in order to line up the rightmost letters. Downup
lined up
the leftmost letters, which is easy.
Suppose we start, as we did for downup
, with a version that only
works for single-letter words:
to inout1 :word println :word end
But we can't quite use inout1
as a subprocedure of
inout2
, as we did in the downup
problem. Instead we
need a different version of inout1
, which prints a space before
its input:
to inout2.1 :word print "\ ; quote, backslash, followed by a space println :word end to inout2 :word println :word inout2.1 butfirst :word println :word end
Print
is a command, which requires one input. The input can be
any datum. Print
prints its input, like println
, but
does not move the cursor to a new line afterward. The cursor remains right after
the printed datum, so the next println
or print
command will continue on the same line.
We need another specific case or two before a general pattern will become apparent. Here is the version for three-letter words:
to inout3.1 :word repeat 2 [print "\ ] println :word end to inout3.2 :word print "\ println :word inout3.1 butfirst :word print "\ println :word end to inout3 :word println :word inout3.2 butfirst :word println :word end
Convince yourself that each of these procedures prints the right number of spaces before its input word.
Here is one final example, the version for four-letter words:
to inout4.1 :word repeat 3 [print "\ ] println :word end to inout4.2 :word repeat 2 [print "\ ] println :word inout4.1 butfirst :word repeat 2 [print "\ ] println :word end to inout4.3 :word print "\ println :word inout4.2 butfirst :word print "\ println :word end to inout4 :word println :word inout4.3 butfirst :word println :word end
- Try this out and try writing inout5
along the same lines.
How can we find a common pattern that will combine the elements of all these procedures? It will have to look something like this:
to inout :word repeat something [print "\ ] println :word if something [stop] inout butfirst :word repeat something [print "\ ] println :word end
This is not a finished procedure because we haven't figured out how to fill
the blanks. First I should remark that the stop rule is where it is, after the
first println
, because that's how far the innermost procedures
(inout2.1
, inout3.1
, and inout4.1
) get.
They print some spaces, print the input word, and that's all.
Another thing to remark is that the first input to the repeat
commands in this general procedure will sometimes be zero, because the outermost
procedures (inout2
, inout3
, and inout4
)
don't print any spaces at all. Each subprocedure prints one more space than its
superprocedure. For example, inout4
prints no spaces. Its
subprocedure inout4.3
prints one space. inout4.3
's
subprocedure inout4.2
prints two spaces. Finally,
inout4.2
's subprocedure inout4.1
prints three spaces.
In order to vary the number of spaces in this way, the solution is to use
another input that will have this number as its value. We can call it
spaces
. The procedure will then look like this:
to inout :word :spaces repeat :spaces [print "\ ] println :word if equal? count :word 1 [stop] inout (butfirst :word) (sum :spaces 1) repeat :spaces [print "\ ] println :word end ? inout "hello 0 hello ello llo lo o lo llo ello hello
Notice that, when we use inout
, we have to give it a zero as its
second input. We could eliminate this annoyance by writing a new
inout
that invokes this one as a subprocedure:
to inoutHelper :word :spaces repeat :spaces [print "\ ] println :word if equal? count :word 1 [stop] inoutHelper (butfirst :word) (sum :spaces 1) repeat :spaces [print "\ ] println :word end to inout :word inoutHelper :word 0 end
(The easiest way to make this change is to edit inout
with the
editor and change its title line and its recursive call so that its name is
inoutHelper
. Then, type in the new superprocedure
inout
.)
This program structure, with a short superprocedure and a recursive
subprocedure, is very common. The superprocedure's only job is to provide the
initial values for some of the subprocedure's inputs, so it's sometimes called
an initialization procedure. In this program inout
is an
initialization procedure for inoutHelper
.
By the way, the parentheses in the recursive call aren't really needed; I just used them to make it more obvious which input is which.
Other Stop Rules
The examples I've shown so far use this stop rule:
if equal? count :word 1 [stop]
Perhaps you wrote your down
procedure the same way:
to down :word println :word if equal? count :word 1 [stop] down butlast :word end
Here is another way to write down
, which has the same effect.
But this is a more commonly used style:
to down :word if empty? :word [stop] println :word down butlast :word end
This version of down
has the stop rule as its first instruction.
After that comes the instructions that carry out the specific work of the
procedure, in this case the println
instruction. The recursive call
comes as the last instruction.
A procedure in which the recursive call is the last instruction is called tail recursive. We'll have more to say later about the meaning of tail recursion. (Actually, to be precise, I should have said that a command in which the recursive call is the last instruction is tail recursive. What constitutes a tail recursive operation is a little tricker, and so far we haven't talked about recursive operations at all.)
Here's another example:
to countdown :number if equal? :number 0 [println "Blastoff! stop] println :number countdown difference :number 1 end ? countdown 10 10 9 8 7 6 5 4 3 2 1 Blastoff!
In this case, instead of a word that gets smaller by butfirst
ing
or butlast
ing it, the input is a number from which 1 is subtracted
for each recursive invocation. This example also shows how some special action
(the println "Blastoff!
instruction) can be taken in the innermost
invocation of the procedure.
- Here are some ideas for recursive programs you can write. In each case
I'll show an example or two of what the program should do. Start with
printPiecePerLine
, a command with one input. If the input is
a word, the procedure should print each letter of the word on a separate line.
If the input is a list, the procedure should print each member of the list
on a separate line:
? printPiecePerLine "hello h e l l o ? printPiecePerLine [the rain in spain] the rain in spain
- As an example in which an initialization procedure will be helpful, try
triangle
, a command that takes a word as its single input. It
prints the word repeatedly on the same line, as many times as its length.
Then it prints a second line with one fewer repetition, and so on until it
prints the word just once:
? triangle "frog frog frog frog frog frog frog frog frog frog frog
- A more ambitious project is diamond
, which takes as its input
a word with an odd number of letters. It displays the word in a diamond pattern,
like this:
? diamond "program g ogr rogra program rogra ogr g
(Hint: Write two procedures diamondTop
and diamondBottom
for the growing and shrinking halves of the display. As in inout
,
you'll need an input to count the number of spaces by which to indent each line.)
Can you write diamond
so that it does something sensible for an input
word with an even number of letters?
Brian Harvey,
bh@cs.berkeley.edu
